Every solar panel begins with a simple act: a material catches sunlight and turns part of it into electricity. Silicon has performed that act with extraordinary consistency for decades. It covers rooftops, fields, calculators, and spacecraft. Yet a single material cannot use every part of sunlight equally well. Some photons carry more energy than silicon can convert efficiently, while others pass through with energy still unused. The challenge is not that silicon has failed. It is that silicon has shown us exactly where the next opportunity lies.

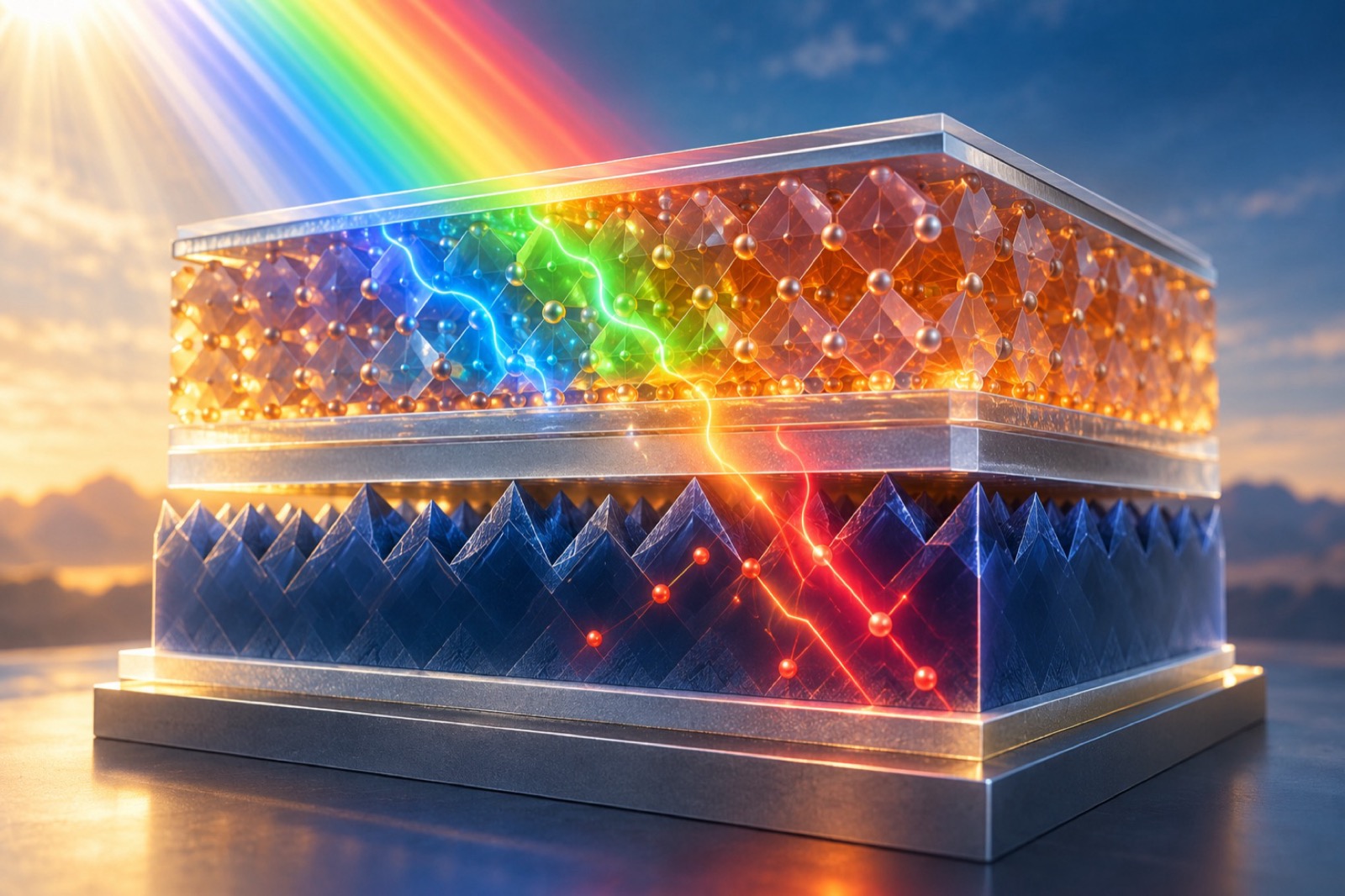

Perovskite tandem solar cells answer that challenge by combining two absorbers in one device. A thin perovskite layer can be tuned to absorb higher-energy visible light, while a silicon cell beneath it captures more of the red and near-infrared light that remains. The two layers share the same area, but divide the spectrum between them. That arrangement can produce more electricity from the same patch of sunlight than either layer could produce alone.
The name perovskite describes a crystal structure, not one single recipe. In solar research, the most common family is metal-halide perovskites, made by combining organic or inorganic ions with metals and halogens. Their chemistry is unusually adjustable. By changing the composition, researchers can tune the color of light a film absorbs. The U.S. Department of Energy describes this tunability as one reason perovskites can be stacked with silicon and other absorbers in tandem devices.
That flexibility has driven a remarkable rise in laboratory performance. The Department of Energy reports that research perovskite cells improved from about three percent efficiency in 2009 to more than twenty-six percent on small-area devices. Perovskite-silicon tandems have moved close to thirty-four percent in the same account. These are research-cell results, not a promise that every rooftop panel will suddenly reach those numbers. They do show why the field has moved from an intriguing material discovery to a serious engineering program.
The underlying idea is easy to state and difficult to build. Each layer needs to absorb the right wavelengths, release charges quickly, and pass the remaining light to the layer below. Electrons and holes must cross interfaces without becoming trapped or losing their energy as heat. A tandem therefore depends on transport layers, recombination junctions, transparent contacts, surface treatments, and optical coatings working together. A beautiful perovskite film is not enough. The complete stack has to behave like one reliable electrical device.
Dr Junke Wang at the University of Oxford studies exactly this problem. His research description explains that perovskite composition can be tuned to absorb different colors of sunlight, then integrated into tandem cells with silicon and copper indium gallium selenide. It also identifies the practical difficulties: compatible layers, tailored deposition strategies, and the need to reduce energy and optical losses at each junction. This is the less glamorous side of a record efficiency, but it is where a record becomes a technology.
Stability is the most important test. Early perovskite devices could lose performance when exposed to moisture, heat, oxygen, or intense light. A commercial solar module must work through years of weather, temperature changes, and electrical stress. Researchers are responding with better encapsulation, more stable chemical compositions, defect passivation, and contact materials designed to slow unwanted ion movement. The progress is real, but the standard is high. A laboratory cell that lasts for a short test is not equivalent to a module that can be financed and insured for decades.
Manufacturing brings a second test. Small research cells can be coated with great precision, but a module covers a much larger area and must remain uniform from edge to edge. Teams are evaluating vapor deposition, blade coating, slot-die coating, and other thin-film processes. The goal is not simply to make a larger cell. It is to preserve the same electrical quality while using processes that can run repeatedly, inspect defects, manage waste, and connect the finished cells into a module.
Oxford PV illustrates one route from research to production. The company describes its tandem cell as a thin perovskite-based cell coated directly onto a conventional silicon cell. It says its process uses thin-film deposition, metallization, and standard module assembly. Its published roadmap lists a twenty-five percent module efficiency for its current product stage and higher targets for later years. Those figures are company claims and should be read as product information, while independent research charts remain the right place to compare laboratory records across technologies.
The difference between a cell record and a module result matters. Research-cell charts maintained by the National Laboratory of the Rockies include only efficiencies confirmed by recognized independent test laboratories and measured under standardized conditions. That discipline protects readers from confusing a small, carefully prepared device with a field-ready product. It also makes progress easier to trust. When a new result survives independent measurement, it becomes part of a shared record rather than a headline resting on a private experiment.
If tandem devices become durable and affordable, their value will extend beyond efficiency charts. More electricity from the same roof area can matter in dense cities, on constrained industrial sites, and wherever new land for solar is difficult to permit. Thin or flexible designs could also support building-integrated photovoltaics, specialized vehicles, portable equipment, and other surfaces that do not suit conventional glass modules. These possibilities are promising, not guaranteed. Each one depends on lifetime, repair, recycling, safety, and certification.
Lead management is part of that responsibility. Many high-performing perovskites contain lead, so a serious product must control exposure during manufacturing, operation, damage, and end-of-life handling. Encapsulation and recovery systems can reduce risk, while researchers continue to investigate lead-free alternatives. The right question is not whether one material has a perfect profile. It is whether the entire design treats environmental impact as a constraint from the beginning, with evidence strong enough for regulators, workers, customers, and communities.
There is also a lesson in what tandem solar says about innovation. The breakthrough is not just a new crystal. It is a new relationship between materials. Silicon contributes maturity, mechanical strength, and a deep manufacturing base. Perovskite contributes tunable absorption and the possibility of thin-film processing. The best device respects both. It does not ask a young material to replace every part of an older technology before it has earned trust. It places each material where its strengths are most useful.
That approach creates an unusually rich engineering feedback loop. A small change in chemical composition can shift a bandgap. A surface treatment can reduce recombination. A transparent contact can improve light management while introducing resistance. A coating process can preserve a lab result or erase it across a larger area. Chemists, physicists, and manufacturing engineers therefore need to work on the same problem at the same time. A film that is perfect in a glovebox but impossible to coat consistently is not yet a solar technology.
Silicon will remain central to solar power for a long time. Perovskite tandems do not need to erase that installed base to matter. They need to help new installations produce more energy from limited space, and they need to open useful forms that silicon alone cannot easily provide. That is a practical ambition, not a fantasy of instant replacement.
The deeper story is about how a physical limit becomes an invitation. A single-junction silicon cell has a finite ability to use the solar spectrum, but that limit does not define the future of solar power. Engineers can change the architecture, tune the absorbers, and make the interfaces do more work. Progress will be measured not only by a peak percentage, but by lifetime in the field, consistent manufacturing, responsible materials handling, and honest independent testing.
For the scientists and builders working on the next generation of photovoltaics, the lesson is hopeful and concrete. Learn the constraints that actually break a device. Treat every interface as part of the invention. Measure durability with the same seriousness as efficiency. Then ask whether the next leap requires a completely new material or a wiser way to arrange materials already in hand. Perovskite tandem solar cells are still moving through the difficult distance between a research record and a dependable product. That distance is precisely where engineering becomes meaningful.
